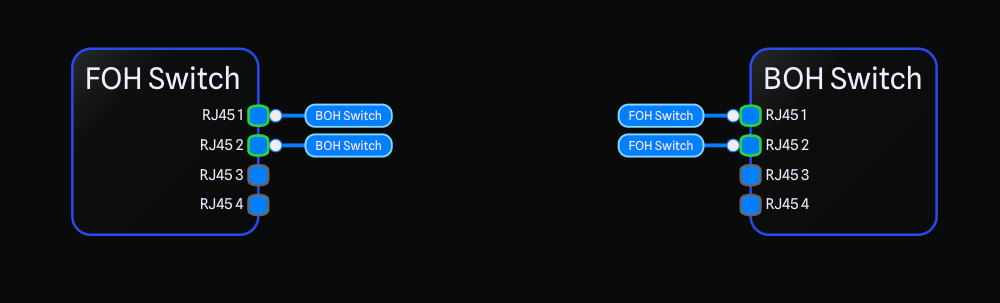

First shown of at EXPO-SCENE this year, Connection Tags are a new way to cut down on visual clutter in large drawings. Instead of drawing the full line between two distant pieces of gear, a tagged connection appears as two short stubs,...
1.39.2
(2026-05-30)
The bug fixes from the previous Beta release are now released. Please see below for more details.
Bug Fixes
Fixed a crash that could occur when opening a project containing hidden ports that were still connected to connections.
Fixed a crash that could occur when opening a project containing hidden ports that were still connected to connections.
Projects affected by this crash are now automatically repaired when opened.
Fixed an issue where an existing connection cou...
New Automation category and additional port options
1.39.1
(2026-05-20)
This release adds Automation as its own gear category, eight new port connectors and the Allen & Heath ME signal type, and a fresh batch of Default Library gear.
New Port Options
New Connectors
LEMO 3-Pin
Phoenix 6-Pin
powerCON 32 A
Weiland 6-Pin
VHDCI
F...

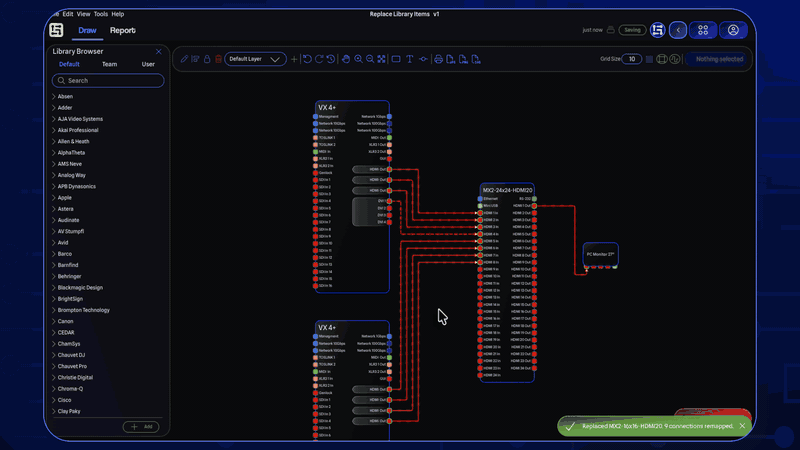

Swap gear in place, restyle your connections, and more!
1.39.0
(2026-05-10)

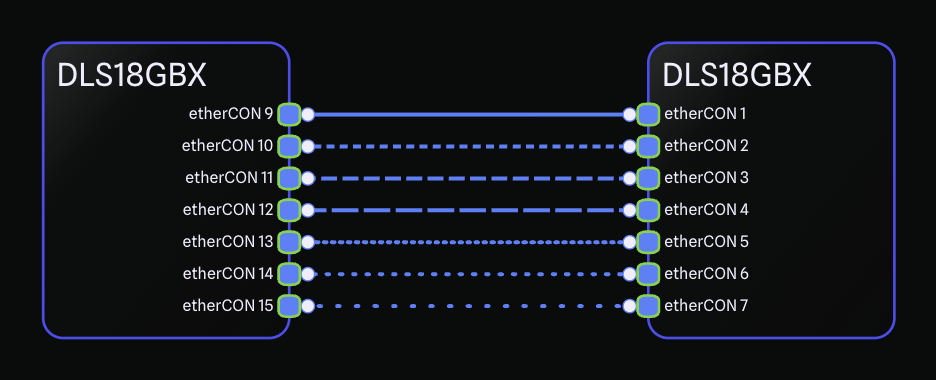

All the features from recent Beta releases are now fully available! This release lets you change a placed gear item's library entry and expansion cards without redrawing connections, adds custom connection line styles, makes the Library Browser and M...
Fixed an issue where reusing a VLAN ID in the same sync would lose the chosen ID. For example, deleting VLAN 101 and recreating it with the same ID now keeps 101 instead of bumping it to the next free number when synced.
